Marine GPS Antenna Aerial Replacement for Garmin GPSMAP Ship Navigation Receiver Fishfinder Sounder+

with 10meter cableSMA Connector/TNC Connector/BNC Adapter

Marine GPS Antenna Aerial Replacement for Garmin GPSMAP GDU GNC NavTalk Pilot StreetPilot AIS Boat Ship Navigation Receiver Fishfinder Sounder+10m Cable TNC /BNC / SMA Connector

About this item

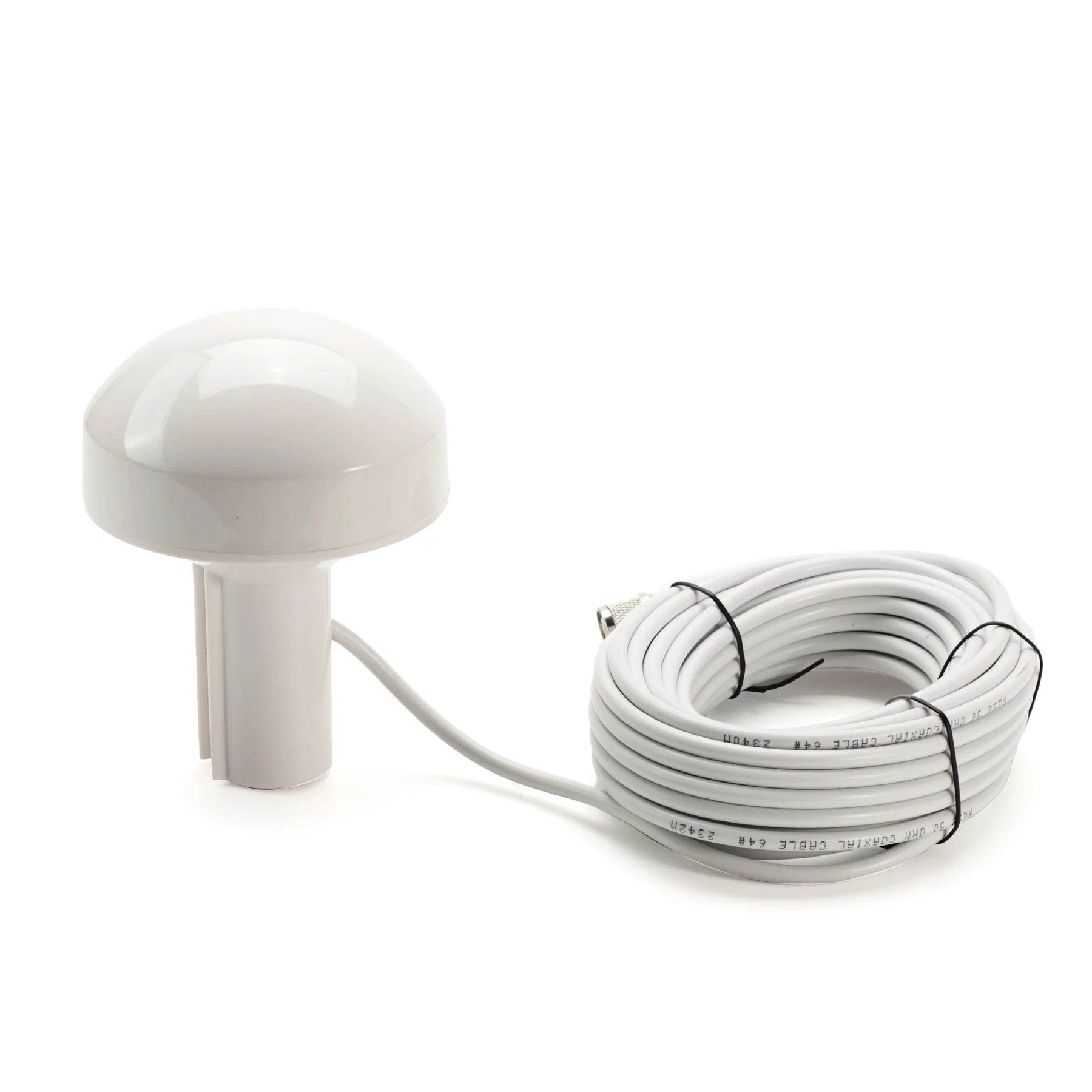

• Easy to install and use, plug and play, GA-015 marine GPS Receiver Antenna gps antenna with 10meter cable with Antenna Mounts for Garmin GPSMAP Ship Navigation for more device

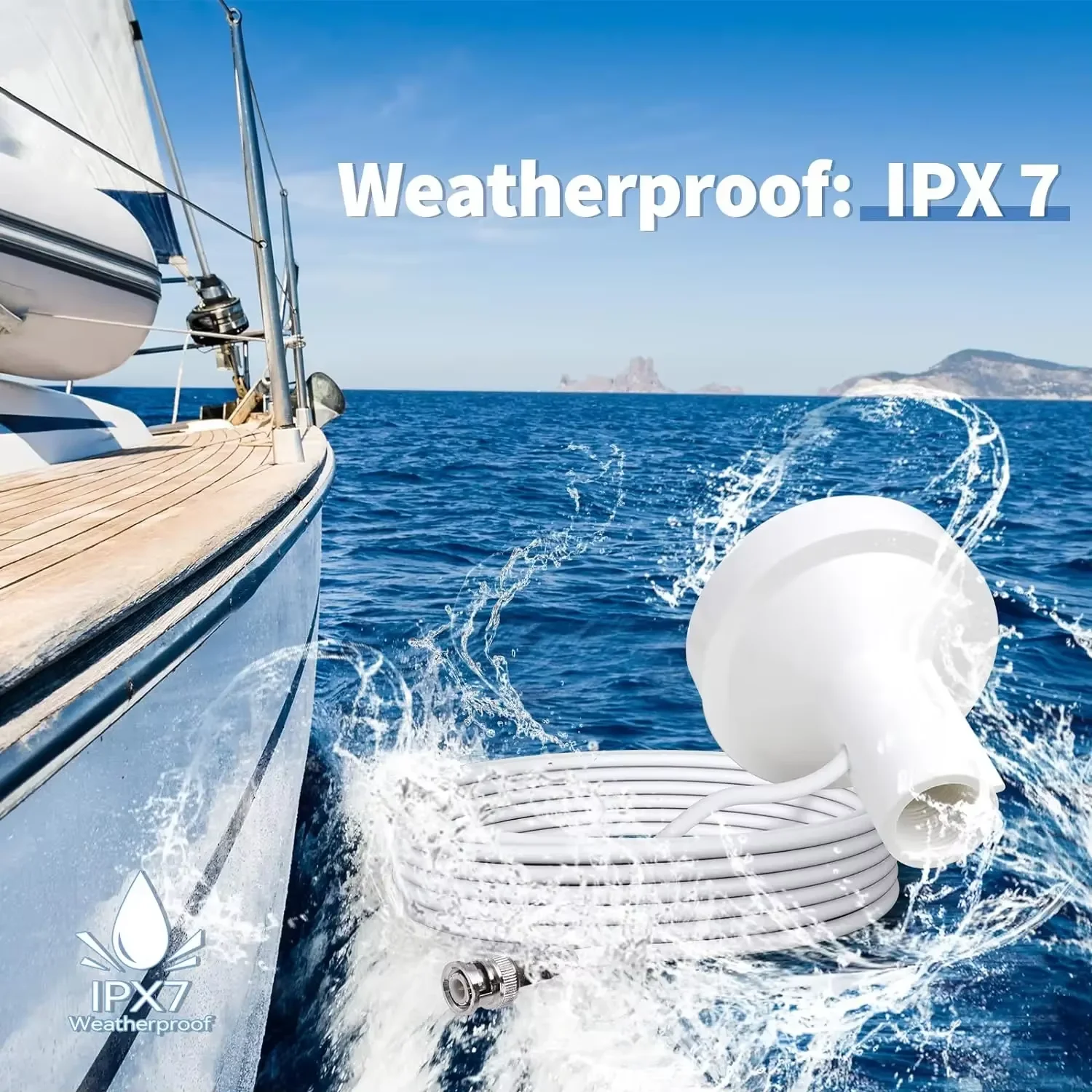

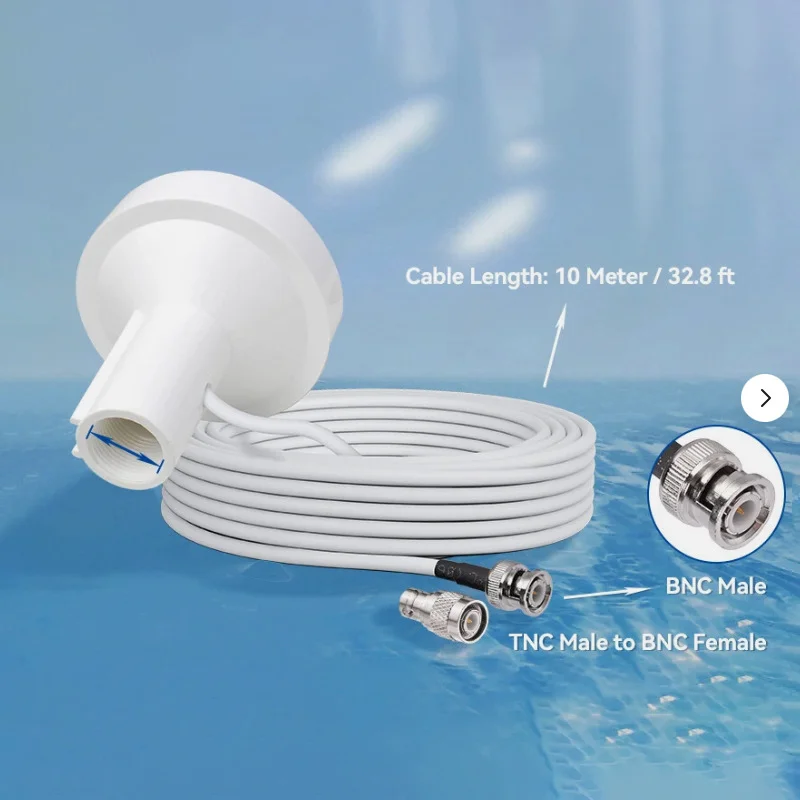

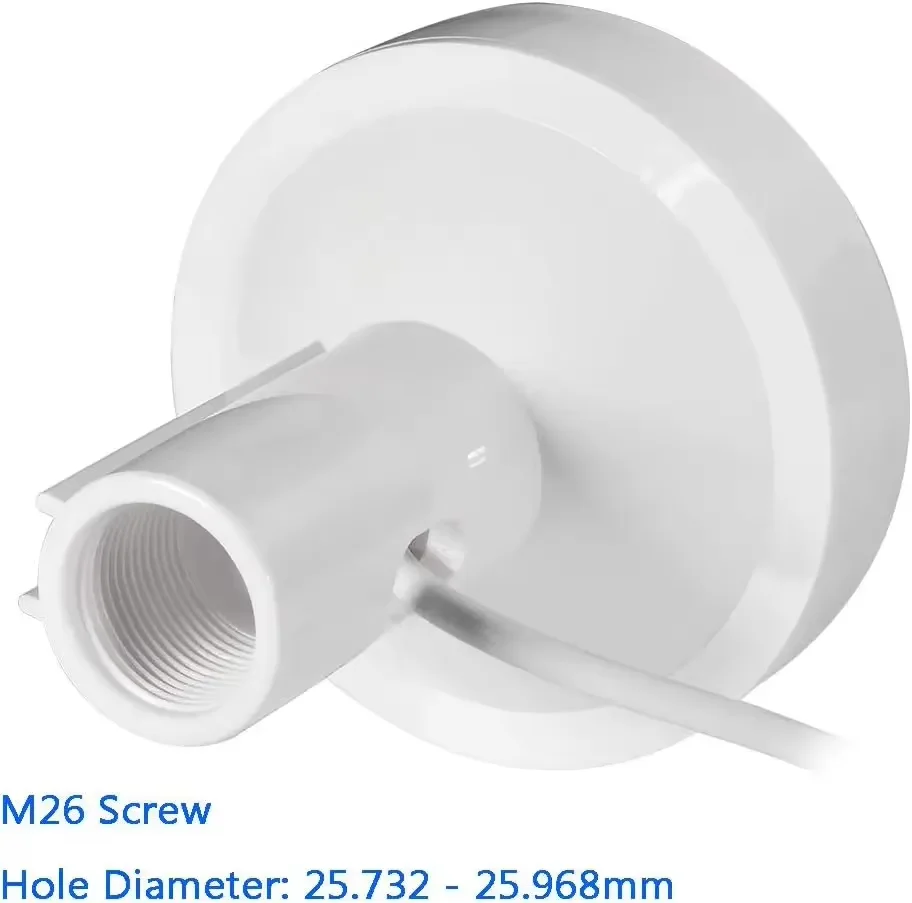

• Low-profile water resistant (IP65) housing with mounting hole at the bottom for post or pole mount, long cable (26ft / 8 meter) provides more flexible application, Comes with TNC/SMA/BNC connector, and sturdy hard plastic base

• Widely compatible with Boat Ship Marine GPS Navigation System Unit Modem Receiver Transducer Explorer Fishfinder Sounder with BNC male connector

• Frequency Range: 1575±5MHz, Voltage: 3~5V, Amplifier Gain: 26dB, Antenna Gain: 3.5dBic, LNA Gain: 28 dB typ., Noise Figure: 1.5dB typ., Operating Temperature: -45~+85℃, Storage Temperature: -50~+90℃, Weight (without cable): 200g (7.5oz), Housing Color: White

• Reference Replacement Part Number: GA-26C, GA-29, GA-30, GA-56, etc.

• Replacement for Garmin GPS 128, GPSMAP 182, GPSMAP 188C, GPSMAP 198C, GPSMAP 220, GPSMAP 276C, GPSMAP 421, GPSMAP 530, GPSMAP 540, etc.

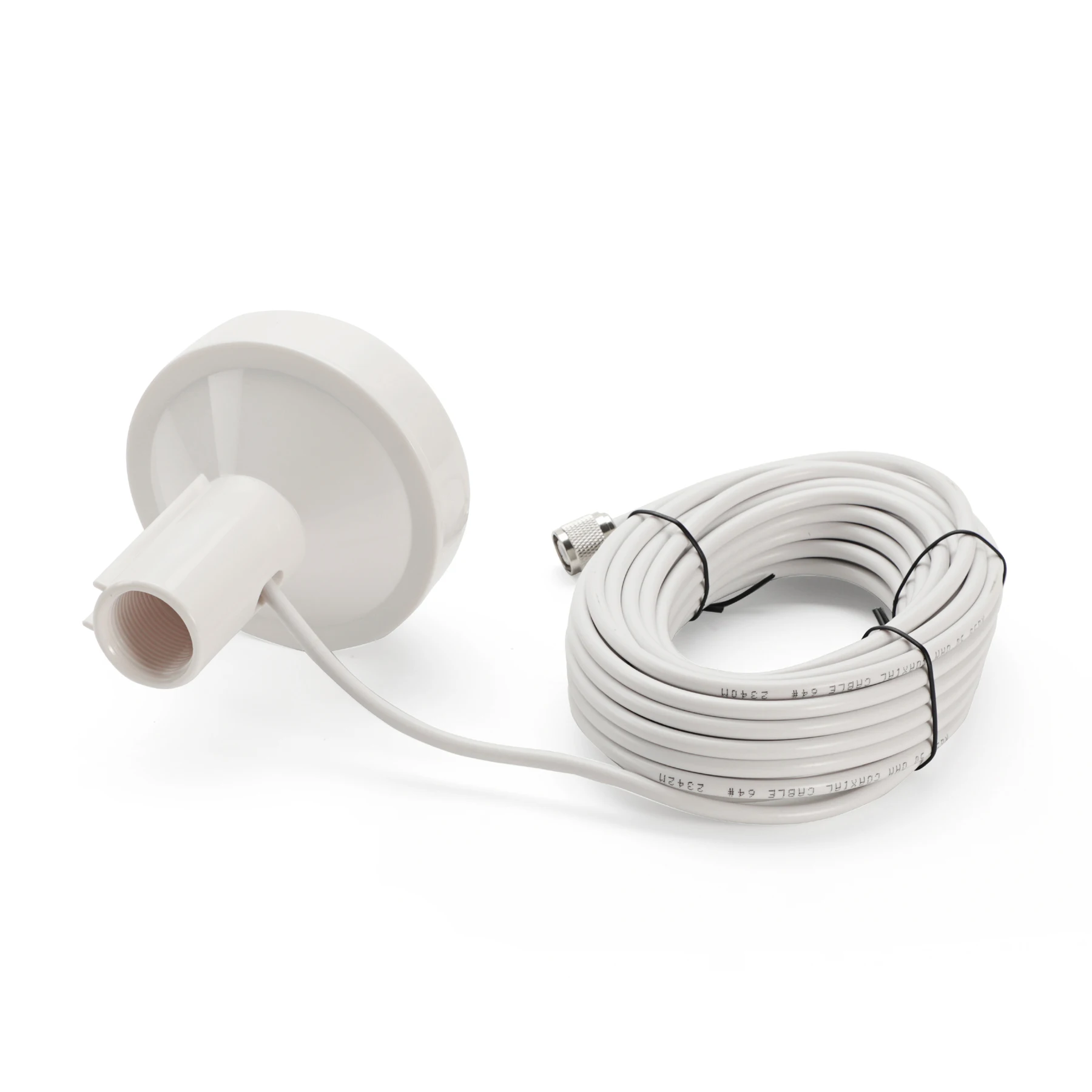

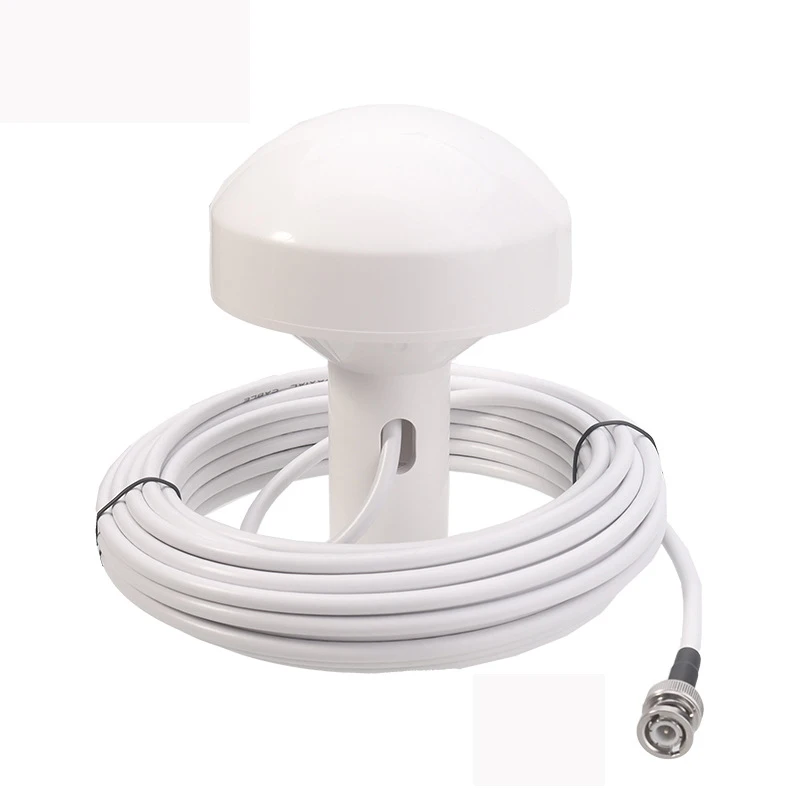

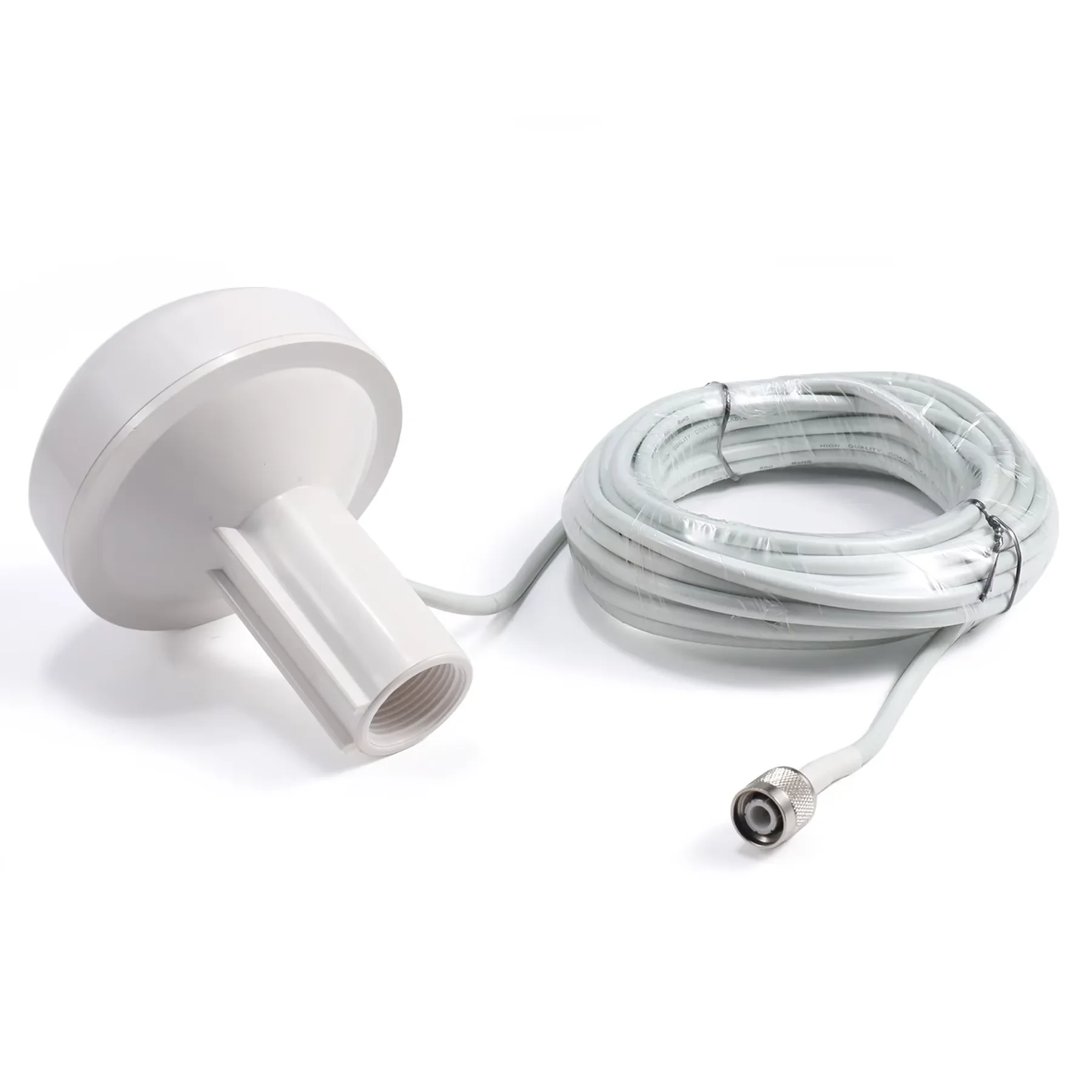

• What's in the Box: 1 x GPS antenna (white) with 10M cable /TNC or BNC or SMAconnector, , 1 x antenna base mount (black)


Compatible with Garmin Models:AIS 600 GDU 250, 250XL, 300XL TSO, 370, 373, 375, 420 GNC 250, 250XL, 300XL TSO, 420, 430, 530 GPS 15 (010-00240-01), 15H/15L, 15x, 15xH, 15xL, 25 Series, 45 (010-00088-00), 45XL (010-00123-00), 48 (010-00144-00), 50 (010-00043-00), 65 (010-00054-00), 75 (010-00051-00), 89 (010-00094-00), 90 (010-00077-01), 92 (010-00168-01), 95XL (010-00059-01) GPS 100 (GPS 100), 100AVD (GPS 100AVD), 100STD (010-00015-00), 120 (010-00084-00), 120XL (010-00140-00), 125 Sounder (010-00104-00), 128 (010-00157-00), 150, 150XL, 152 (010-00227-00), 152H, 155XL TSO, 165 TSO GPS 400, GPS 500 GPS II (010-00103-00), II Plus (010-00128-00), III (010-00126-00), III Pilot (010-00125-00), III Plus (010-00185-00), V (010-00226-03) GPSCOM 170 (010-00079-00) GPSMAP 130 (010-00091-00), 135 Sounder (010-00092-01), 152 (010-00227-00), 162 (010-00191-00), 168 Sounder (010-00199-00), 172 (010-00362-00), 172C (010-00227-00), 176 (010-00208-00), 176C (010-00214-00), 178, 178C (010-00363-00), 178C Sounder (010-00340-00), 180 (010-00149-00), 182 (010-00238-00), 182C (010-00259-00), 185 Sounder (010-00150-00), 188 (010-00239-00), 188C (010-00260-00), 192C (010-00431-00), 196 (010-00301-00), 198C Sounder (010-00432-00), 200 (010-00049-00), 205 (010-00069-01), 210 (010-00069-00), 215 (10-00069-20) , 220 (010-00070-00), 225 (010-00070-20), 230 (010-00118-00), 232 (010-00118-00), 235 Sounder (010-00119-00), 238 Sounder (010-00250-10), 276C, 278 (010-00569-00), 292 (010-00506-01), 295 (010-00200-00), 296, 298C Sounder, 376C, 378, 396, 420/420s, 421/421s, 430/430s, 431/431s, 440/440s, 441/441s, 478, 492, 495, 496, 498C Sounder, 520/520s, 521/521s, 525/525S, 526/526S, 530/530S, 531/531S, 535/535S, 536/536S, 540/540S, 541/541S, 545/ 545S, 546/546S , 550/550S, 555/555S, 720/720S, 740/740S MAP 205 (010-00069-01) NavTalk Pilot (010-00141-01) StreetPilot, StreetPilot ColorMap (010-00175-00), StreetPilot III GPS (010-00232-10), etc.

• LNA Gain 28dB waterproof GPS antenna.

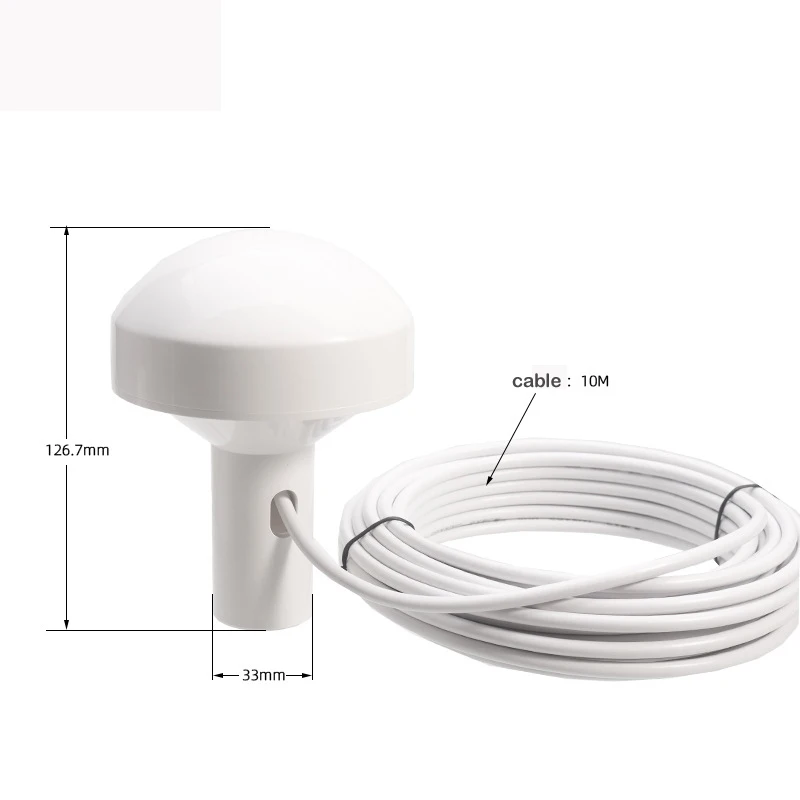

• Coaxial Cable: 10M(33ft) White RG58.

• Frequency: 1575±5 MHz ; VSWR: <1.5; Bandwidth: 10 MHz. Dc voltage: 3-5V DC.

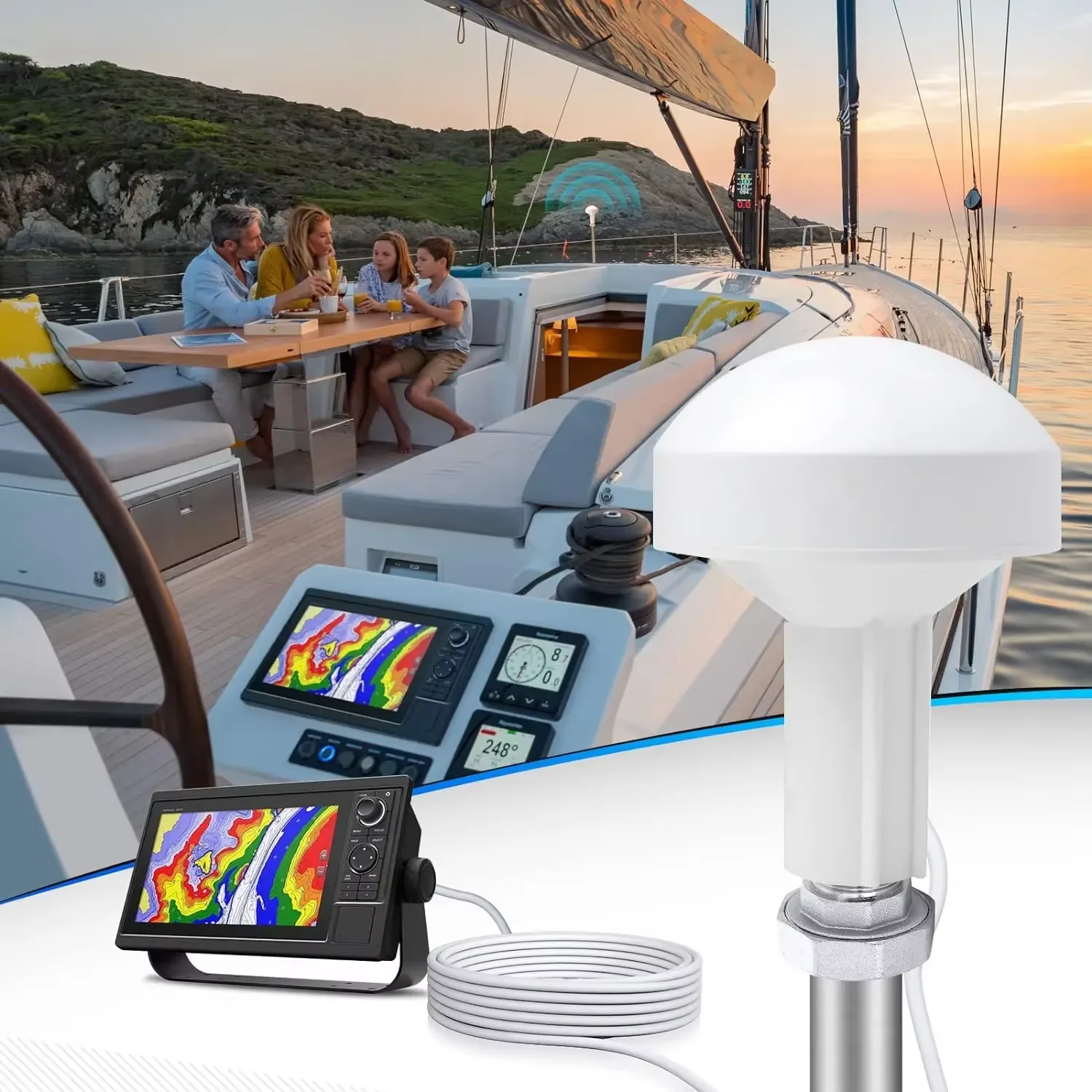

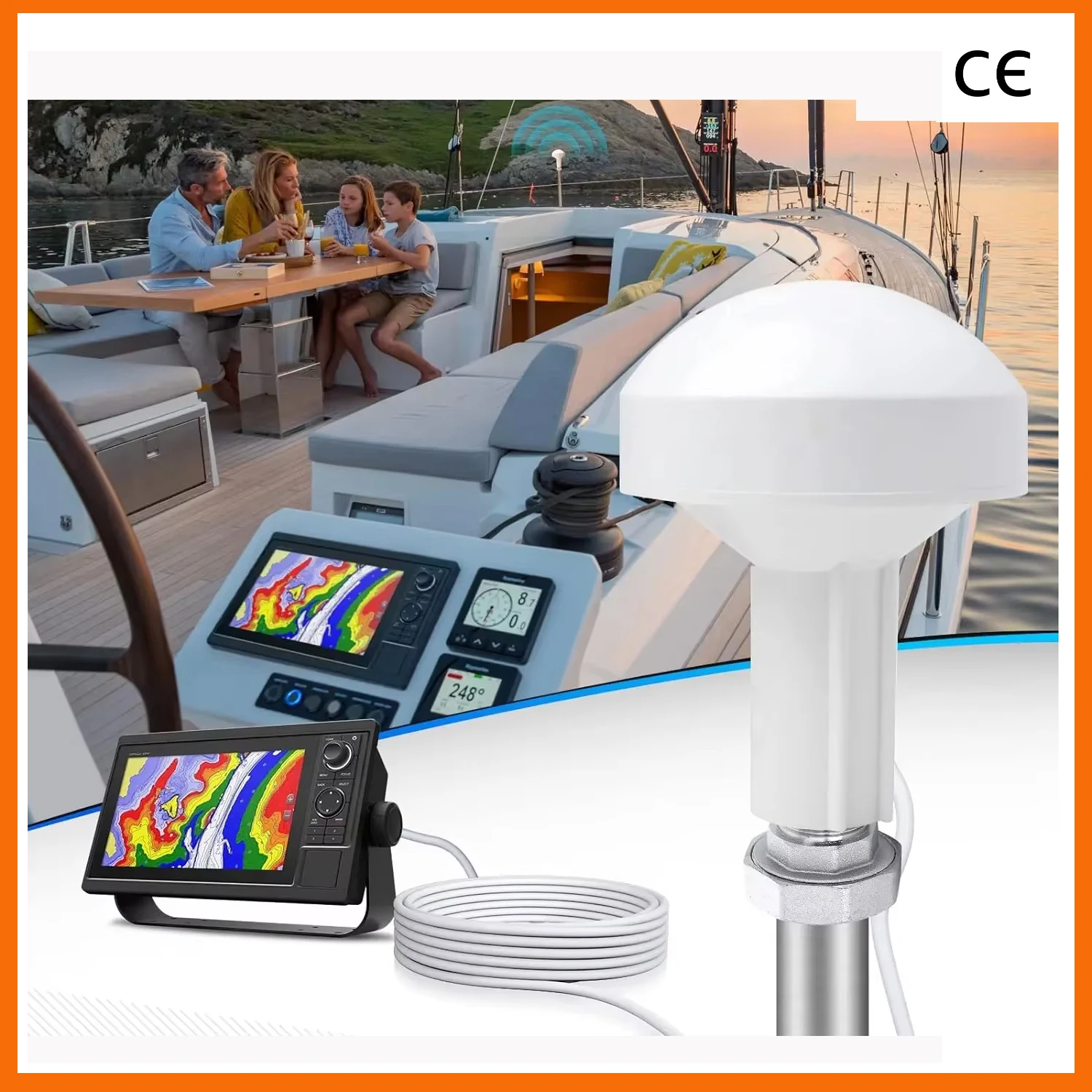

• Marine GPS Antenna mount for easy lay down is the perfect antenna for marine uses.

• Marine GPS Antenna Standard SMA MALE connector will work with most GPS systems and the ABS mount base allows you to conveniently install your Boat/Yacht/Houseboat.


Electrical Specifications

Frequency: 1575±5 MHz

VSWR: <1.5

Bandwidth: 10 MHz;Impendence: 50 ohm

Gain: ≥28DB

Polarization: RHCP

Lna Specifications

Lna Gain(without cable): 42±2 dB

Filter Insertion Loss: <3 dB; Noise Figure: <1.3

Current Consumption: 18-35mA

Dc voltage: 3-5V DC
