Model: Mi9000P （Plastic） Waterproof Wind Speed and Direction Sensor Anemometer for Sailing Yacht Marine Supplies
MI9000P made of plastic ,
MI9000S /MI9000SR made of stainless steel ,
MI9000SR with heater Function.
NMEA interface , 2 NMEA0183 port 1 NMEA2000 port .
Output : MWV and MWV , can access data to VDR , ECDIS, etc.
Input : RMC , VTG ( GNSS) , VHW , VBW ( Speed log), THS , HDT , HDG (compass)
GET A FREE QUOTE NOW
7-inch HD Touch screen Display unit Marine Anemometer MI-9000P
Mi9000 Series Anemometers are specially designed for ships.
It belongs to the type of wind-driven rotary shaft and meets the performance and functional requirements of ISO international standards.
The sensor shell : MI9000P made of plastic , MI9000S /MI9000SR made of stainless steel .
The case has corrosion resistance , long life cycle , suitable for all kinds of ship. Especially for coastal and ocean-going ship working environments.
Using absolute encoder sensor, the acquisition is more accurate.
7-inch HD Touch screen LCD display unit
Three display mode: Real wind speed and direction, Relative Wind speed and direction, and Ground wind speed and direction , can be selected flexibly.
Sunny, Cloudy, Duck, and Night 4 color matching modes which are comfortable visual effects in different environments. The automatic switching mode can automatically switch the mode according to the sunrise and sunset time, and can set switching time according to the needs
Multi-Channel NMEA0183 input and output , can be connected to Speed log, satellite compass, GNSS antenna , provide standard wind direction and wind speed data to other navigation equipment .

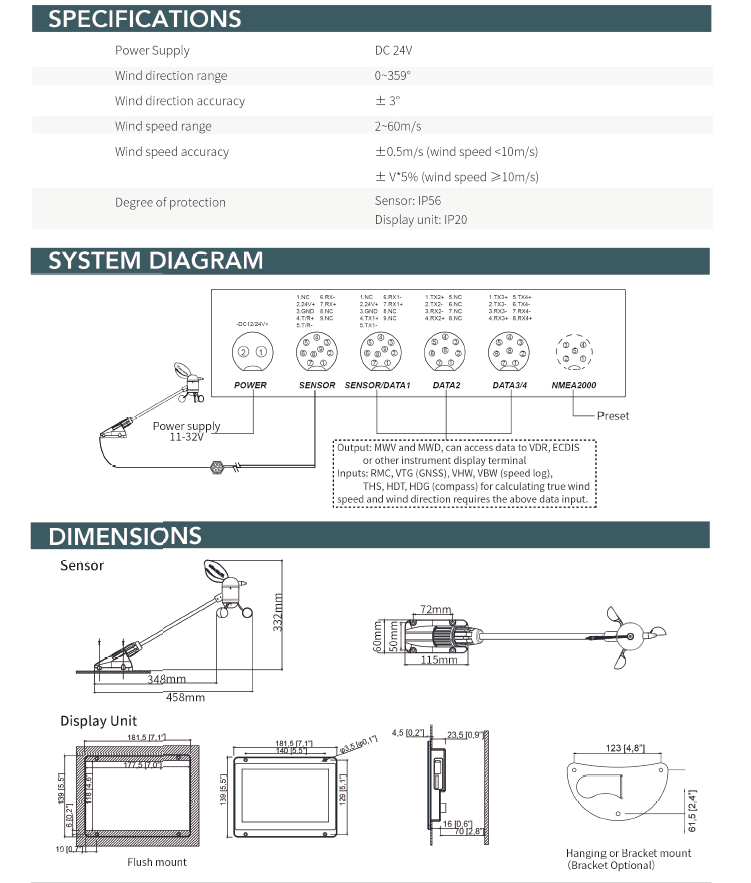

SPECIFICATION
Power Supply : DC24V
Wind Direction Range : 0- 359 degree
Wind Direction Accuracy : +/-3 degree
Wind Speed Range : 2- 60 m/s
Wind Speed Accuracy : +/- 0.5 m/s ( wind speed < 10m/s)
+/- V*5% ( Wind speed > 10 m/s)
Water Proof level : Sensor IP56 , Display unit : IP20 .
NMEA interface , 2 NMEA0183 port 1 NMEA2000 port .
Output : MWV and MWV , can access data to VDR , ECDIS, etc.
Input : RMC , VTG ( GNSS) , VHW , VBW ( Speed log), THS , HDT , HDG (compass) for
Calculate the true wind . speed and wind direction requires the above data input.
Features:
▶ Mi9000 series anemometers are specially designed for ships. ▶ It belongs to the type of wind-driven rotary shaft and meets the performance and functional requirements of ISO international standards. ▶ The sensor shell is made of plastic, which has corrosion resistance, high temperature resistance, high strength, long life cycle, suitable for all kinds of ships, especially for coastal and ocean-going ship working environment. ▶ Using absolute encoder sensor, the acquisition is more accurate. The display adopts a 7-inch full-touch high-definition LCD screen, which is beautiful in design and easy to operate. ▶ The interface design adopts the international professional ship design style, with three display modes of real wind speed and direction, relative wind speed and direction, and ground wind speed and direction, which can be selected flexibly. ▶ Sunny, cloudy, dusk, and night 4 color matching modes, which have comfortable visual effects in different brightness environments. The automatic switching mode can automatically switch the mode according to the sunrise and sunset time, and can also set the switching time according to the needs. ▶ Multi-channel NMEA0183 input and output, can be connected to speed log, satellite compass, GNSS antenna, etc., and provide standard wind direction and wind speed data for other navigation equipment. ▶ With automatic/manual heating function, it can still operate normally in harsh environments (optional function).
▶ Mi9000 series anemometers are specially designed for ships. ▶ It belongs to the type of wind-driven rotary shaft and meets the performance and functional requirements of ISO international standards. ▶ The sensor shell is made of plastic, which has corrosion resistance, high temperature resistance, high strength, long life cycle, suitable for all kinds of ships, especially for coastal and ocean-going ship working environment. ▶ Using absolute encoder sensor, the acquisition is more accurate. The display adopts a 7-inch full-touch high-definition LCD screen, which is beautiful in design and easy to operate. ▶ The interface design adopts the international professional ship design style, with three display modes of real wind speed and direction, relative wind speed and direction, and ground wind speed and direction, which can be selected flexibly. ▶ Sunny, cloudy, dusk, and night 4 color matching modes, which have comfortable visual effects in different brightness environments. The automatic switching mode can automatically switch the mode according to the sunrise and sunset time, and can also set the switching time according to the needs. ▶ Multi-channel NMEA0183 input and output, can be connected to speed log, satellite compass, GNSS antenna, etc., and provide standard wind direction and wind speed data for other navigation equipment. ▶ With automatic/manual heating function, it can still operate normally in harsh environments (optional function).
