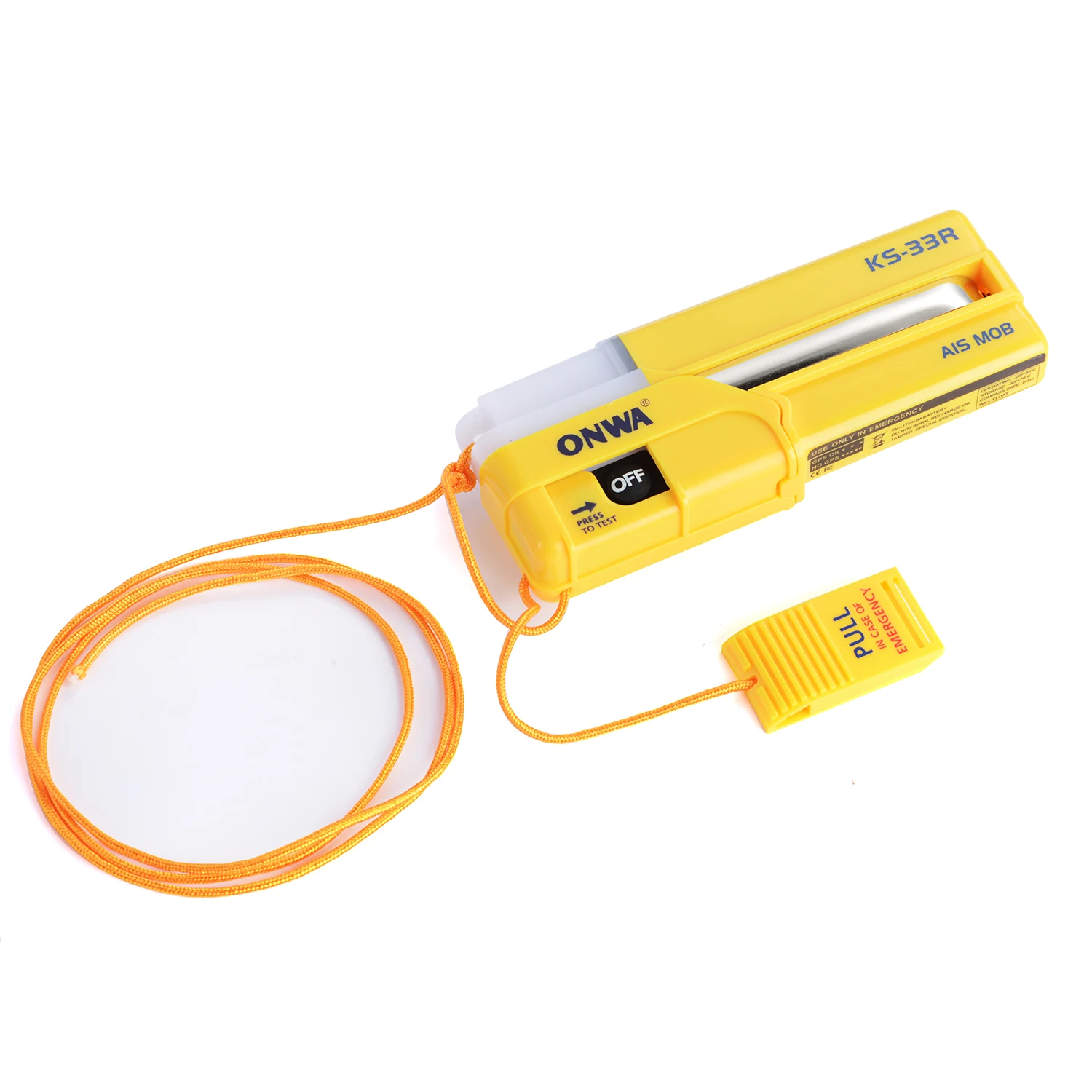

ONWA KS-33R AIS-MOB Personal Locator Beacon Smartfind AIS MOB Tracker Transmits GPS Target Tracking Information
transmits GPS target tracking information over AIS.
compatible with plotters and onboard navigation systems to assist fast location and retrieval.
small and light weight for mounting on life jacket.
unique serialized ID.
LED flashing indicator.
minimum 24 hour continuous operation.
7-year battery life.
Features:
Transmits GPS target tracking information over AIS
Compatible with plotters and onboard navigation systems to assist fast location and retrieval
Small and lightweight for mounting on life jacket
Unique serialized ID
LED flashing indicator
Buzzer
Minimum 24hour continuous operation
7 year battery life

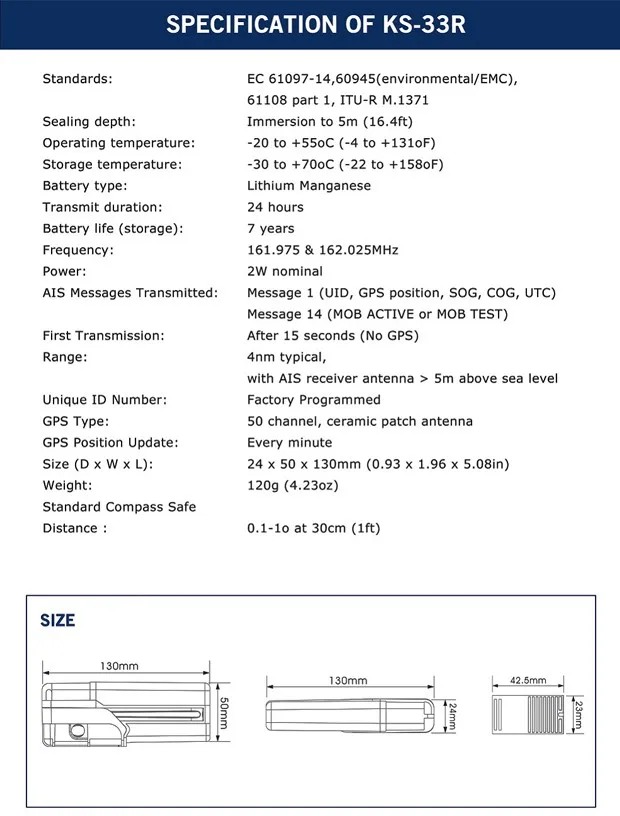

Specifications
Standards: EC 61097 -14, 60945 (environmental /EMC),
61108 part 1, ITU –RM, 1371
Sealing depth: Immersion to 5m (16.4ft)
Operating temperature: -20 to +55oC (-4 to +131oF)
Storage temperature: -30 to +70oC (-22 to +158oF)
Battery type: Lithium Manganese
Transmit duration: 24 hours
Battery life (storage): 7 years
Frequency: 161.975 &162.025MHz
Power: 2W nominal
AlS Messages transmitted: Message 1 (UID, GPS position, SOG ,COG ,UTC )
Message 14 (MOB ACTIVE or MOB TEST)
First Transmission: After 15 seconds (No GPS)
Range: 4nm typical, with AIS receiver antenna >5m above sea level
Unique ID Number: Factory Programmed
GPS Type: 50 channel, ceramic patch antenna
GPS Position Update; Every minute
Size (D x W x L): 24 x 50 x 130mm (0.93 x 1.96 x 5.08in)
Weight: 120g (4.23oz)
Transmits GPS target tracking information over AIS
Compatible with plotters and onboard navigation systems to assist fast location and retrieval
Small and lightweight for mounting on life jacket
Unique serialized ID
LED flashing indicator
Buzzer
Minimum 24hour continuous operation
7 year battery life
Specifications
Standards: EC 61097 -14, 60945 (environmental /EMC),
61108 part 1, ITU –RM, 1371
Sealing depth: Immersion to 5m (16.4ft)
Operating temperature: -20 to +55oC (-4 to +131oF)
Storage temperature: -30 to +70oC (-22 to +158oF)
Battery type: Lithium Manganese
Transmit duration: 24 hours
Battery life (storage): 7 years
Frequency: 161.975 &162.025MHz
Power: 2W nominal
AlS Messages transmitted: Message 1 (UID, GPS position, SOG ,COG ,UTC )
Message 14 (MOB ACTIVE or MOB TEST)
First Transmission: After 15 seconds (No GPS)
Range: 4nm typical, with AIS receiver antenna >5m above sea level
Unique ID Number: Factory Programmed
GPS Type: 50 channel, ceramic patch antenna
GPS Position Update; Every minute
Size (D x W x L): 24 x 50 x 130mm (0.93 x 1.96 x 5.08in)
Weight: 120g (4.23oz)
Standard Compass Safe Distance: 0.1-10 at 30cm (1ft)
