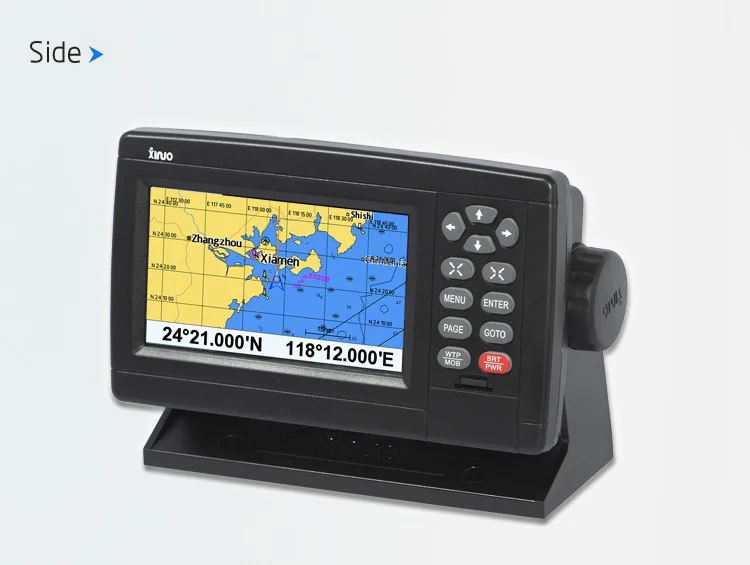

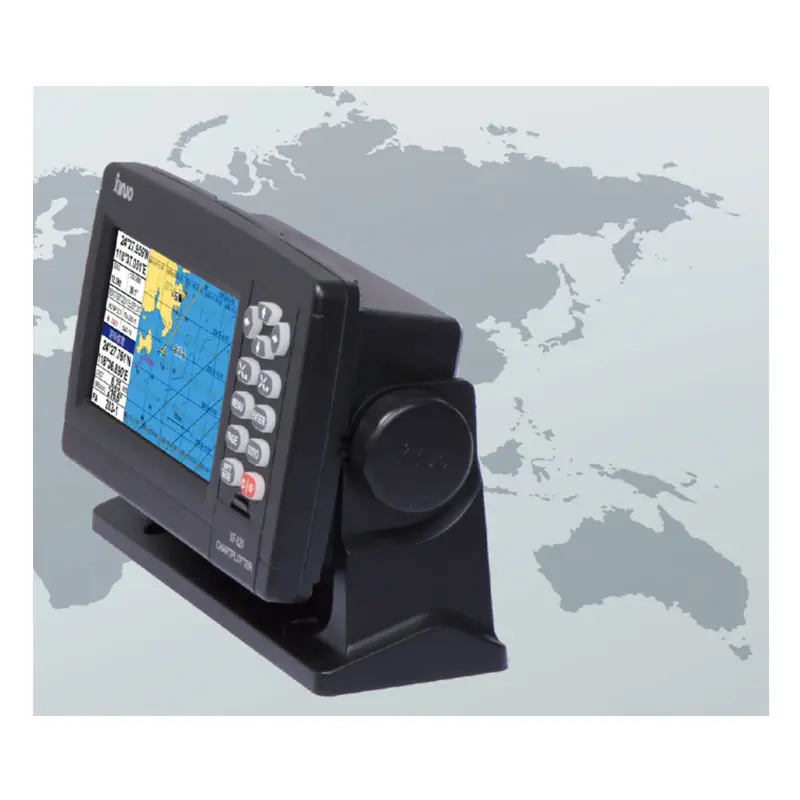

Xinuo XF-520 5'' Marine Satellite GPS Navigator Color LCD Display Dual-Mode Positioning Boat Chart Plotter GPS Navigation
5”Color LCD with 480 x 272 resolution, high brightness and wide angle of view.
C-MAP ( MAX ) & XINUO-MAP dual chart systems for user to choose.
Provide AIS input interfaces to connect with AIS device conveniently and display AIS targets dynamically on the chart.
Multi-language support and six display modes options.
Built-in global chart, upgrade chart regularly with free of charge.
Conform to IPX6 water-proof standard.
Please leave a message on which area of the ocean map you would !
5”Color LCD with 480 x 272 resolution, high brightness and wide angle of view.
C-MAP ( MAX ) & XINUO-MAP dual chart systems for user to choose.
Provide AIS input interfaces to connect with AIS device conveniently and display AIS targets dynamically on the chart.
Multi-language support and six display modes options.
Built-in global chart, upgrade chart regularly with free of charge.
Conform to IPX6 water-proof standard.
Display unit | XF-520 |
Display Type | Color TFT LCD |
Display Size | 5 inch |
Display Resolution | 480 × 272 pixels (WQVGA) |
Display Brightness | 400cd/m2 |
Language | English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish, Thai, Greek, Indonesian, Japanese, Korean, Spanish; Burmese |
Display Modes | Standard Chart View, Simple Chart View, AIS Data , GNSS Data, 3D Navigation, Compass |
Memory Capacity | 10000 waypoints, 200 routes, |

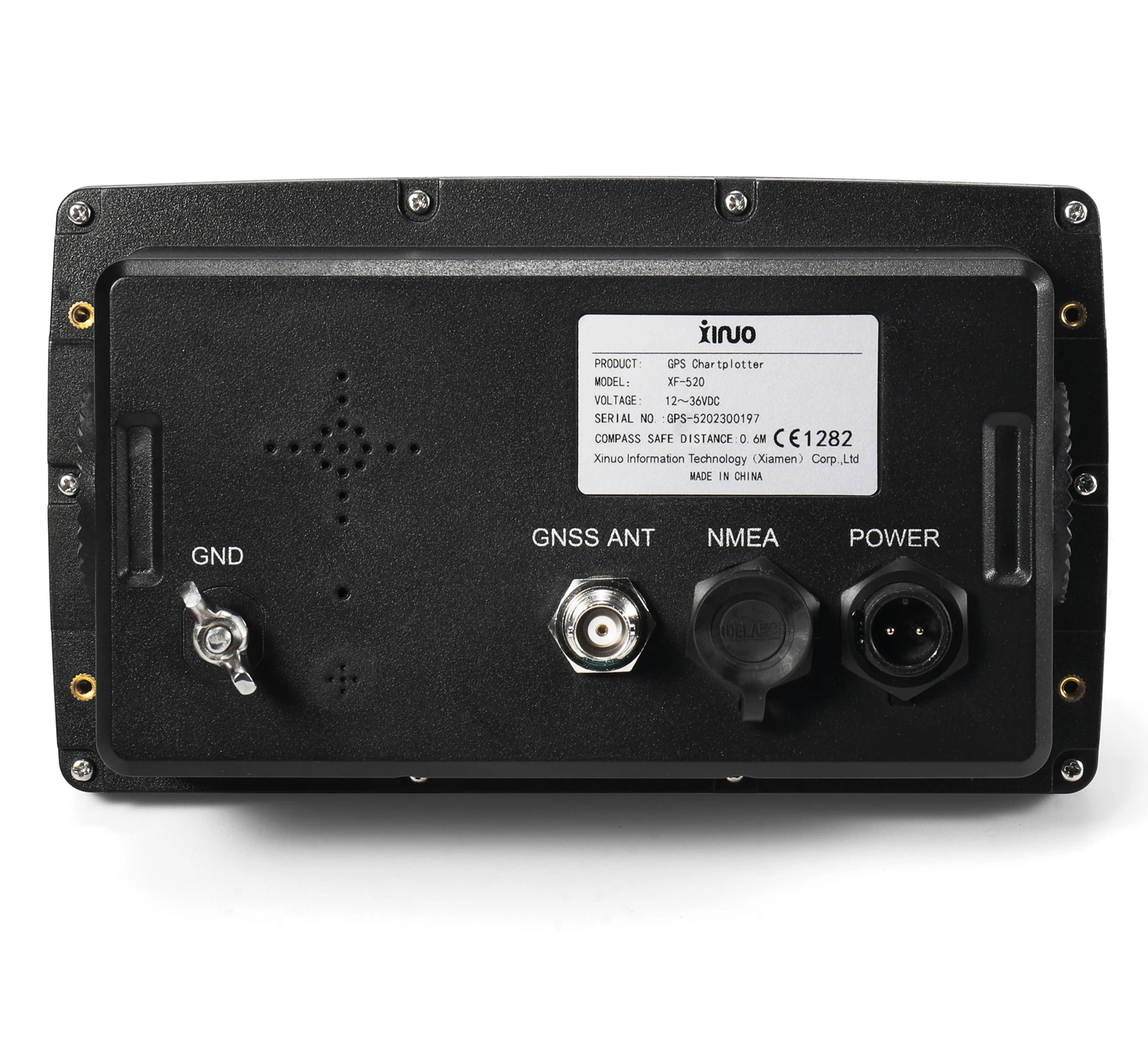

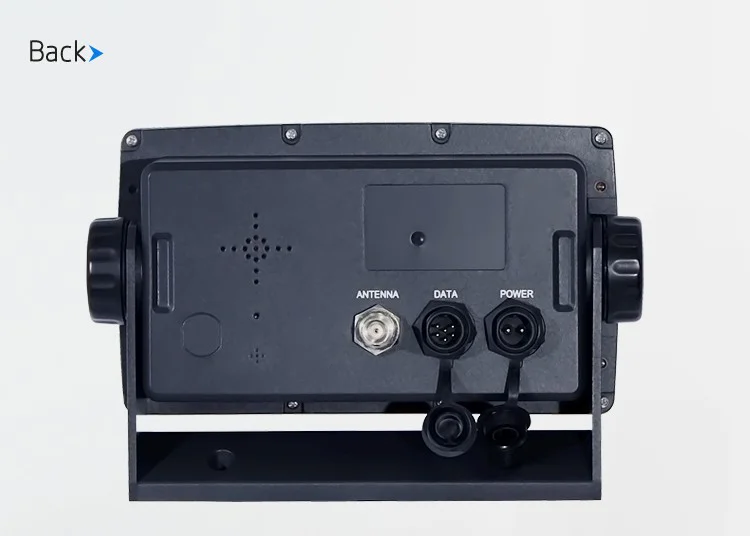

Interface | 0183 Output 2 Ports, AIS Input 1 Ports(Mutual independent, Baud rate can be set indenpently) |
Chart | C-MAP (MAX) & XINUO MAP |
Power Supply | DC10V-36 V |
Enviromental | |
Working temperature | -15℃~+55℃ |
Storage temperature | -20℃ ~ +60℃ |
Waterproofing | IPX6 |
GNSS | |
GNSS Receiver | 32 channels (Support WAAS/EGNOS/MSAS/GAGAN ) |
Receive Frequency | L1 (1575.42MHz) B1 (1561.098MHz) |
Position Accuracy | GPS&BDS 2.5m |
GPS 3m | |
BDS 5m | |
Speed Accuracy | 0.1m/s(50%@10m/s) |
Acquisition Time | Cold Start: <32s ,Hot Start:<1s |
Tracking Velocity | 999 knots |
Coordinate Systems | WGS-84 (and others) |
Standards | |
IEC 60945 :2002 EMC related items ETSI EN 301 489-1V1.8.1:2008 EMC related items IEC 60950-1:2006 ETSI EN 301 489-3 V1.4.1:2002 EMC related items IEC 60529:2006 EMC related items ETSI EN 300 440-2 V1.4.1:2010 Spurious related items ETSI EN 300 440-1 V1.6.1:2010 Spurious related items | |
Packing List | |
Main Unit×1set | GPS Antenna×1 pc |
Mounting Bracket×1pc | User’s Manual ×1 pc |
Knob ×2 pcs | Quick Guide ×1pc |
Power Cable ×1 pc | Certification ×1pc |
Data Cable with 6 pins plug×1 pc | Warranty Card ×1pc |
